Heidelberg Rollers

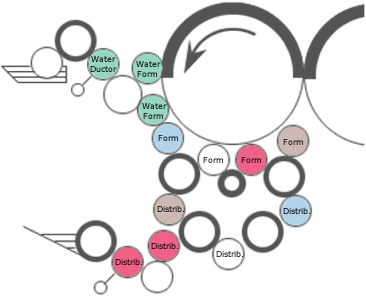

Kord 64

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
KORD64 (COMPLETE SET)
Form/Distributor (Qty.- 2) 57 645 710
Form/Distributor/Ductor (Qty.- 3) 51 645 710
Form/Distributors (Qty.- 2) 53 645 710
Form/Distributors (Qty.- 2) 55 645 710
CONVENTIONAL WATER SYSTEM
Sleeved Water form (Qty.- 1/2) 50.4 670 717
Water Ductor/Form (Qty.- 1) 47.6 670 717

Kord 62

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
Kord62 (Complete Set)
Form/Distributor (Qty.- 2) 57 645 670
Form/Distributor/Ductor (Qty.- 3) 51 645 670
Form/Distributors (Qty.- 2) 53 645 670
Form/Distributors (Qty.- 2) 55 645 670
CONVENTIONAL WATER SYSTEM
Bare Back Water form (Qty.- 1/2) 51 635 677
Sleeved Water form (Qty.- 1/2) 50.4 635 677
Water Ductor/Form (Qty.- 1) 47.6 635 677

Kora

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
Kor/Kora (Complete Set)
Form/Distributor (Qty.- 2) 57 570 620
Form/Distributor/Ductor (Qty.- 3) 51 570 620
Form/Distributors (Qty.- 2) 53 570 620
Form/Distributors (Qty.- 2) 55 570 620
CONVENTIONAL WATER SYSTEM
Bare Back Water form (Qty.- 1/2) 51 585 627
Sleeved Water form (Qty.- 1/2) 50.4 585 627
Water Ductor/Form (Qty.- 1) 47.6 585 627

Kors

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
Kors (Complete Set)
Form/Distributor (Qty.- 2) 57 715 780
Form/Distributor/Ductor (Qty.- 3) 51 715 780
Form/Distributors (Qty.- 2) 53 715 780
Form/Distributors (Qty.- 2) 55 715 780
CONVENTIONAL WATER SYSTEM
Bare Back Water form (Qty.- 1/2) 51 740 787
Sleeved Water form (Qty.- 1/2) 50.4 740 787
Water Ductor/Form (Qty.- 1) 47.6 740 787

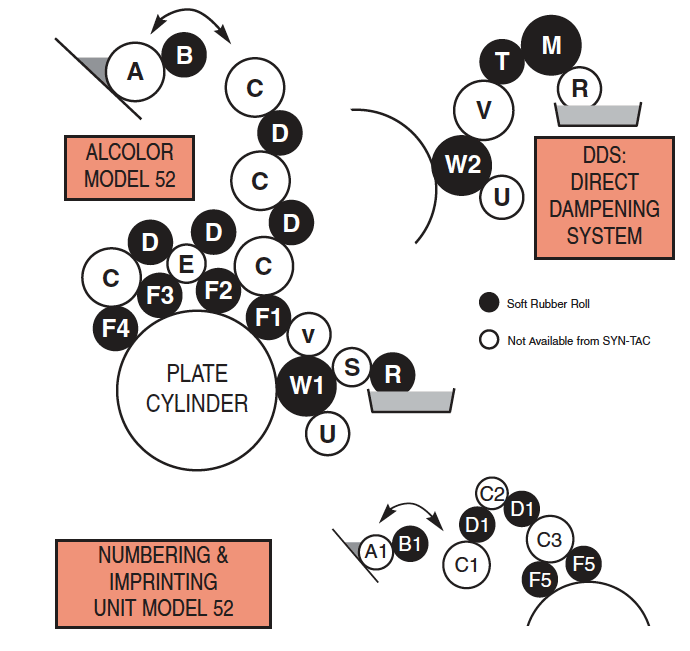

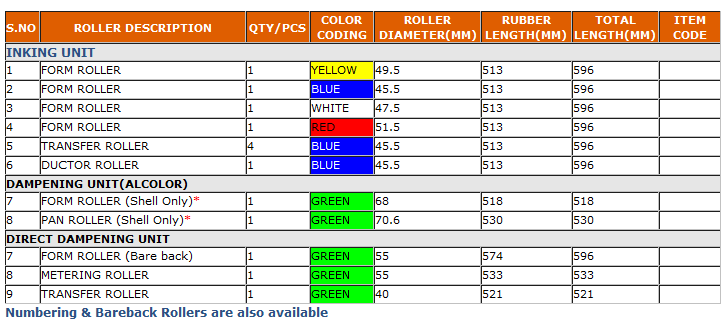

GTO 52 (Alcolor)



GTO52 (Conventional)

Ink Rollers Size
GTO52 (Conventional) (Complete Set)
Form / Distributor / Ductor Roller (Qty.- 6) 513mm X 45mm
Form Roller (Qty.- 1) 513mm X 47mm
Form Roller (Qty.- 1) 513mm X 49mm
Form/Distributors (Qty.- 2) 513mm X 51mm
GTO-52 Conventional Water System
Water Form (Qty.- 1/2) 524mm X 49mm
Water Ductor (Qty.- 1) 527mm X 46mm

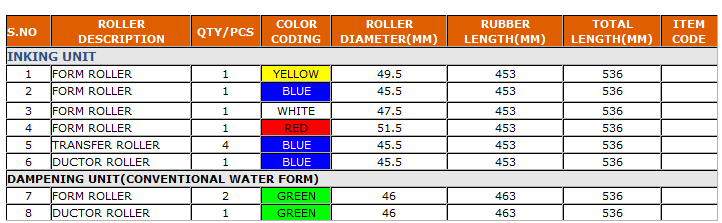

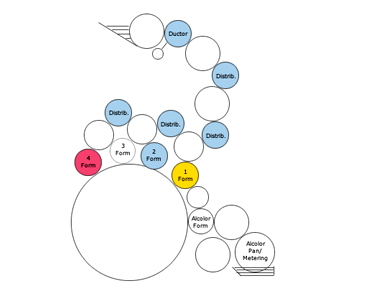

GTO 46 Conventional

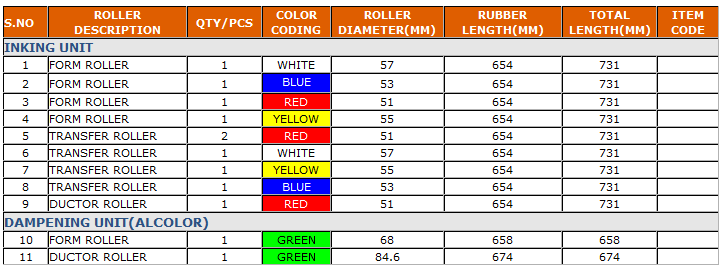

Mo Alcolor

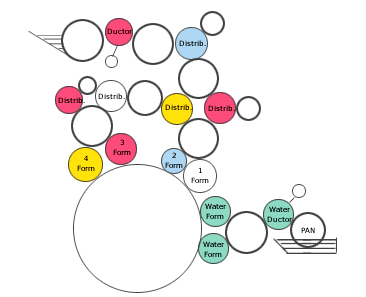

MO (Conventional)

Ink Rollers Size
MO (Conventional) (Complete Set)
Form / Distributor Roller (Qty.- 3) 654mm X 51mm
Form / Distributor Roller (Qty.- 2) 654mm X 53mm
Form / Distributor Roller (Qty.- 2) 654mm X 55mm
Form / Distributor Roller (Qty.- 2) 654mm X 57mm
Ductor (Qty.- 1) 654mm X 51mm
MO Conventional Water System
Water Form (Qty.- 1/2) 670mm X 51mm
Water Ductor (Qty.- 1) 673mm X 48mm

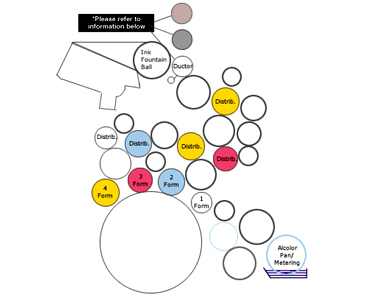

Speedmaster 52

Ink Rollers Size
Ink Form Roller (Complete) 538mm X 64.50mm
Ink Form Roller (Complete) 538mm X 61mm
Ink Form Roller (Complete) 538mm X 54mm
Ink Form Roller (Complete) 538mm X 68mm
Ink Distributor 532mm X 55mm
Transfer Roller 532mm X 50mm
Ink Ductor Roller 520mm X 48mm

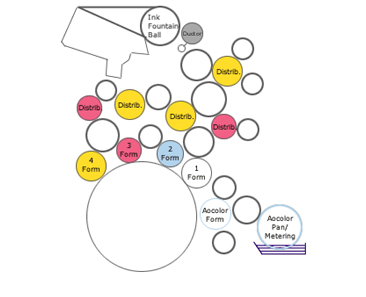

Speedmaster 72/ SORM/SORMZ

Ink Rollers Size
Speed Master 72/SORM / SORMZ (Complete Set)
Form / Distributor Roller (Qty.- 2) 726mm X 57mm
Form / Distributor Roller (Qty.- 2) 726mm X 60mm
Form / Distributor Roller (Qty.- 3) 726mm X 62.5mm
Form / Distributor Roller (Qty.- 2) 726mm X 66mm
Ductor (Qty.- 1) 726mm X 57mm
Speed Master 72/SORM/ SORMZ Conventional Water System
Water Form - Complete (Qty.- 1) 745mm X 63mm
Water Ductor (Qty.- 1) 760mm X 63mm


Speedmaster 74

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
Speedmaster 74 (Complete Set)
Form Roller (Qty.- 1) 60.5 754 814
Form Roller (Qty.- 1) 55.5 754 814
Form Roller (Qty.- 1) 70.5 754 814
Form Roller (Qty.- 1) 65.5 754 814
Ductor (Qty.- 1) 52 750 787
Distributor (Qty.- 2) 54.5 752 821.2
Distributor (Qty.- 3) 64.5 752 821.2
CONVENTIONAL WATER SYSTEM
Bare Back Water form (Qty.- 1/2) 75 752 752
Sleeved Water form (Qty.- 1/2) 84.6 768 768


Speed Master 72/SORM

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
Speedmaster 74 (Complete Set)
Form Roller (Qty.- 1) 60.5 754 814
Form Roller (Qty.- 1) 55.5 754 814
Form Roller (Qty.- 1) 70.5 754 814
Form Roller (Qty.- 1) 65.5 754 814
Ductor (Qty.- 1) 52 750 787
Distributor (Qty.- 2) 54.5 752 821.2
Distributor (Qty.- 3) 64.5 752 821.2
CONVENTIONAL WATER SYSTEM
Bare Back Water form (Qty.- 1/2) 75 752 752
Sleeved Water form (Qty.- 1/2) 84.6 768 768

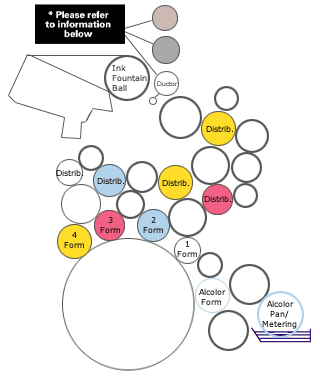

Speed Master 102

Ink Rollers Size
Speed Master 102 (Complete Set)
Form / Distributor Roller (Qty.- 2) 1035mm X 60mm
Form / Distributor Roller (Qty.- 2) 1035mm X 66mm
Form / Distributor Roller (Qty.- 2) 1035mm X 72mm
Form / Distributor Roller (Qty.- 3) 1035mm X 80mm
Ductor (Qty.- 1) 1035mm X 60mm
Speed Master 102 Alcolor Dampening System
Alcolar Water Form - Complete (Qty.- 1) 1040mm X 78mm
Alcolar (PAN Roller)Complete (Qty.- 1) 1060mm X 108mm

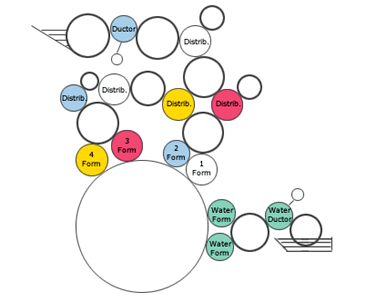

Speed Master 102 SORS/SORSZ

Ink Rollers Size
Speed Master 102 SORS/SORSZ Pre Drupa (Conventional) (Complete Set)
Form / Distributor Roller (Qty.- 2) 1026mm X 57mm
Form / Distributor Roller (Qty.- 2) 1026mm X 60mm
Form / Distributor Roller (Qty.- 3) 1026mm X 62.5mm
Form / Distributor Roller (Qty.- 2) 1026mm X 65mm
Ductor (Qty.- 1) 1026mm X 57mm
Speed Master 102 Conventional Water System
Water Form - Complete (Qty.- 1/2) 1045mm X 65mm
Water Ductor - Complete (Qty.- 1) 1045mm X 63mm


Sord (Conventional)

Ink Rollers Size
SORD (Conventional) (Complete Set)
Form / Distributor Roller (Qty.- 2) 896mm X 57mm
Form / Distributor Roller (Qty.- 2) 896mm X 60mm
Form / Distributor Roller (Qty.- 3) 896mm X 62.5mm
Form / Distributor Roller (Qty.- 2) 896mm X 65mm
Ductor (Qty.- 1) 896mm X 57mm
SORD Conventional Water System
Water Form - Complete (Qty.- 1/2) 915mm X 65mm
Water Ductor - Complete (Qty.- 1) 915mm X 63mm


SORD/SORDZ Conventional

Ink Rollers Size
SORD (Conventional) (Complete Set)
Form / Distributor Roller (Qty.- 2) 896mm X 57mm
Form / Distributor Roller (Qty.- 2) 896mm X 60mm
Form / Distributor Roller (Qty.- 3) 896mm X 62.5mm
Form / Distributor Roller (Qty.- 2) 896mm X 65mm
Ductor (Qty.- 1) 896mm X 57mm
SORD Conventional Water System
Water Form - Complete (Qty.- 1/2) 915mm X 65mm
Water Ductor - Complete (Qty.- 1) 915mm X 63mm

SORD/SORDZ Drupa

Ink Rollers Size
SORD (Conventional) (Complete Set)
Form / Distributor Roller (Qty.- 2) 896mm X 57mm
Form / Distributor Roller (Qty.- 2) 896mm X 60mm
Form / Distributor Roller (Qty.- 3) 896mm X 62.5mm
Form / Distributor Roller (Qty.- 2) 896mm X 65mm
Ductor (Qty.- 1) 896mm X 57mm
SORD Conventional Water System
Water Form - Complete (Qty.- 1/2) 915mm X 65mm
Water Ductor - Complete (Qty.- 1) 915mm X 63mm

SORK/SORKZ

Ink Rollers Roller Diam. mm Rubber Length mm Total Length mm
SORK/SORKZ (Complete Set)
Form/Distributor (Qty.- 2) 57 656 717.8
Form/Distributor (Qty.- 2) 60 656 717.8
Form/Distributor (Qty.- 2) 62.5 656 717.8
Form/Distributor (Qty.- 3) 65 656 717.8
Ductor (Qty.- 1) 57 656 717.8
CONVENTIONAL WATER SYSTEM
Bare Back Water Form (Qty.- 1/2) 65 675 717.8
Sleeved Water Form (Qty.- 1/2) 64.2 675 717.8
Water Ductor (Qty.- 1) 63 675 717.8
Water Ductor (Qty.- 1) 63 690 732.8


SOR/SORZ

Ink Rollers Size
SOR/SORZ (Complete Set)
Form/Distributor (Qty.- 2) 826mm X 60mm
Form/Distributor (Qty.- 2) 826mm X 57mm
Form/Distributor (Qty.- 2) 826mm X 65mm
Form/Distributor (Qty.- 3) 826mm X 62.5mm
Ductor (Qty.- 1) 826mm X 57mm
CONVENTIONAL WATER SYSTEM
Water Form (Qty.- 2) 845mm X 63mm
Water Ductor (Qty.- 1) 845mm X 63mm
